性能和特点:

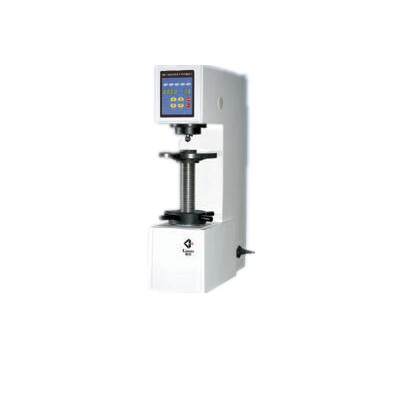

HBE-3000A电子布氏硬度计适用于测定黑色金属、有色金属的布氏硬度。本机采用闭环式传感器加载、电子控制系统,具备10级的试验力。本机具有精度高、高重复性和稳定性,操作简便等特点。
适用范围布氏硬度采用的试验力大,压痕直经也大,适合具有大晶粒金属材料的硬度测试,如: 铸铁,有色金属及合金,各种退火、调质处理后的钢材,特别是对于较软的金属,如纯铝、铅、锡等。
HBE-3000 Electronic Brinell Hardness Tester with 10 steps testing force is able to measure hardness values with each 10 Brinell hardness scales. The instrument adopts circuit type sensor added with control system, thus with high precision, high repetition, and reliability and easy operation.
Usage Range:.
Brinell hardness test which adopts heavy testing force and shows large indentation is apply to measure hardness value for big grain metal materials such as casting parts, nonferrous metals and alloy, various tempered steel, hardening and tempering steel, specially for soft metal such as pure aluminum, lead, tin, etc.
技术数据
布氏标尺 (Brinell Scale) | HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/750、 HBW10/100、 HBW10/250、 HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000 |
试验力 (Testing Force) | 62.5kgf(612.9N)、100kgf (980.7N)、125kgf (1226N)、187.5kgf (1839N)、250kgf 250kgf (2452N)、500kgf (4903N)、750kgf (7355N)、1000kgf (8907N)、1500kgf 1500kgf (14710N)、3000kgf (29420N) |
*小测量单位(Min Measuring Unit) | 0.005mm |
总放大倍数 (Magnification of Microscope) | 20X |
保荷时间(Duration time) | 5~60S |
仪器尺寸(Overall Dimension) | 550×210×750mm(长×宽×高, L X W X H) |
主机重量( Net Weight ) | 约125kg |
试件*大高度 (Max Height of Specimen ) | 230mm |
电源(Power supply) | AC220V±5%,50~60Hz |
执行标准(Carried Standard) | GB/T231.2**标准(GB/T231.2 Chinese Standard) JJG150检定规程(JJG150 Inspection Rule) |
标准配件附件 Standard Accessories | 测量显微镜一套、直经2.5、5、10mm硬质合金球压头、标准硬度块(2)、,大平试台、中平试台、“V”型试台、电源线 A set of Measuring Microscope, Diameter: 2.5, 5 and 10mm Hard Alloy Ball Indenters, 2 pcs Standard Hardness Blocks, Large Testing Table, Medium Testing Table, “V”- shaped Testing Table, Power Cable |
